Visualization of verilog design with yosys and netlistsvg

This is super small post about generating a block diagram from verilog design.

yosys -s vis.ys

read_verilog *.v
prep -top top
write_json top.elaborated.json
write_verilog top.elaborated.v
show -format png -prefix top

To generate SVG then PNG from json, we can use netlistsvg to process the generated yosys json.

npm install -g netlistsvg
netlistsvg  elaborated.json -o elaborated.svg
convert elaborated.svg elaborated.png

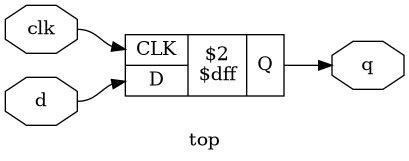

There first diagram is the one generated by yosys.

The second which looks cleaner with less details, is generated by netlistsvg
